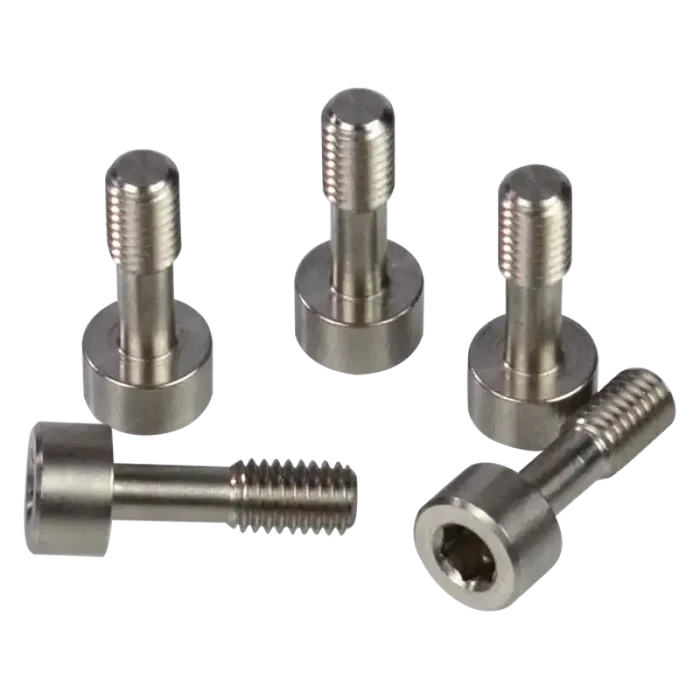

Ascher Racing Captive Screws

Technical Data/Details

• captive screws to bypass M5 thread
• mount QRs such as HRS Xero Play, NRG, Podium Hub to F28/ F64 steering wheel
• 6 pcs, stainless steel
• 4mm allen key required

• Total length inc. Head: 20mm
• Length w/o head: 15mm
• Length actual thread: 7mm

mount through hole M5 threaded QRs to F28/ F64

• e.g. HRS Xero Play
• captive screws bypass QR threads
• mount directly to the rear side of F28/ F64

mount blind hole M5 threaded QRs to F28/ F64

• e.g. NRG, Fanatec Podium Hub
• captive screws bypass threads of wheel casing

1. open F28/ F64 steering wheel
2. screw in all bolts from the inside of the casing until they fall through the thread of the casing
3. attach QR by turning each screw 1/2 rotation step by step

video of procedure shown in detail
